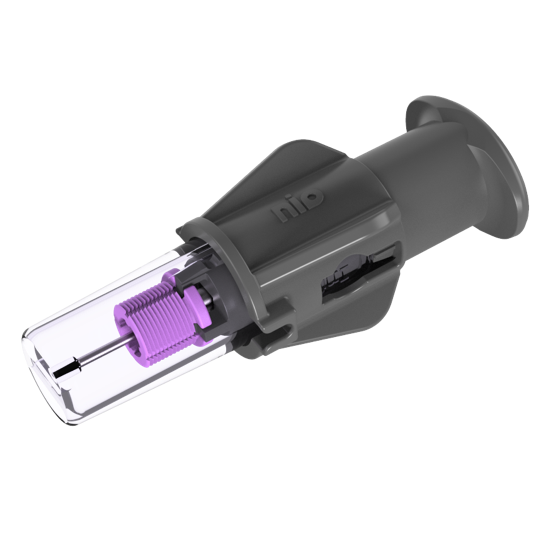

NIO Infant with Fixation Dressing

The NIO Infant provides safe rapid intraosseous access for infant patients. Ensuring rapid access in the proximal tibia when vascular access is required for fluid and drug administration in emergency situations. The NIO Infant is a manual IO device using the innovative Stepped Needle® for graduated penetration into the bone marrow cavity. The NIO Infant includes a Fixation dressing to secure the stabilizer to the skin and prevent dislodgment once intraosseous access has been achieved. Designed for rapid intraosseous access in patients from the gestational age of 36wks with a weight of at least 5lbs (2.3kg) to patients up to 3yrs of age. Features: Facilitates rapid intraosseous access in infant patients Requires no batteries or maintenance Stepped Needle provides sensory feedback of bone penetration Needle Gauge 14G to 18G Fixation dressing helps to prevent dislodgement Pocket-sized and lightweight Sterile single-use device Safety needle cap 5-year shelf life NIO Infant requires no batteries no assembly and no extra parts. Product Specifications Weight 56g Packaging Packed individually in a peel back blister pack with fixation dressing Needle Gauge 18G (Stepped Needle 14G to 18G) Needle Effective Length . 15mm (.6in) Needle Penetration Depth The cannula cortex penetration section (18G) is 2.6mm (.1in) Safety Mechanism  Stepped Needle 14G to 18G Shelf Life* 5 years Specifications are subject to change without notice. *From date of manufacture Product Data Sheet
